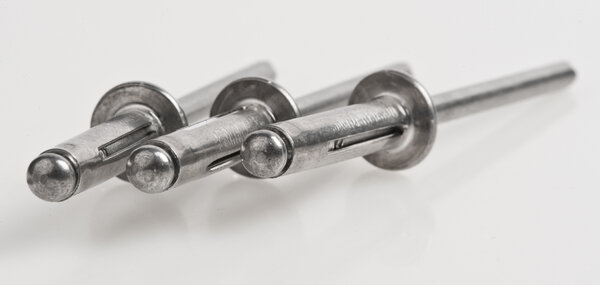

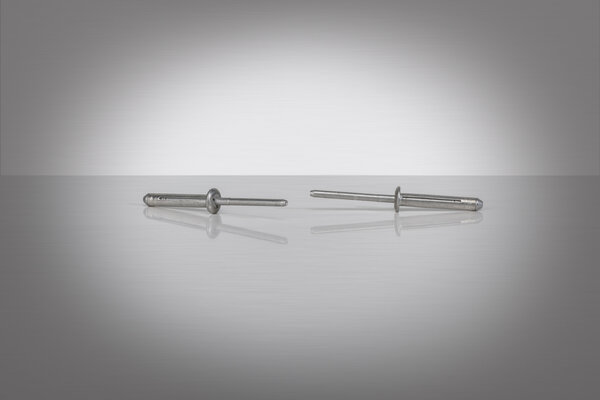

TRI-FOLD blind rivets alu/alu dome head 4.8 x 22.2
Articlenumber: 1455668EAN-Code: 4007081660051
-
Grip range min.3,00 mm
-
Grip range max.8,50 mm
-
Head diameter10,10 mm
-
Head shapeDome head
TRI-FOLD blind rivets alu/alu dome head 4.8 x 22.2
You can buy this product at the following online shops.
Please click on a logo and you will directly linked to the online shop.
Advantages in detail
TRI-FOLD blind rivets alu/alu dome head 4.8 x 22.2

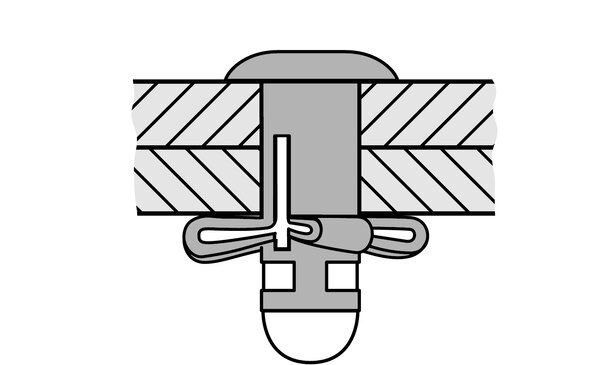

The GESIPA TRI-FOLD blind rivet forms three press lashes on the closing head side during setting. The large moulded lashes distribute the exerted clamping force evenly and gently onto the riveted material. Also, the large surface of the lashes offer excellent protection against the rivet being pulled through very soft, porous or brittle application parts. Thanks to its special design, the TRI-FOLD is also able to compensate over-dimensional or irregular drill hole diameters. TRI-FOLD blind rivets are excellently suited for the automotive field, e.g. for plastic panelling, car body parts and for the interior work inside vehicles, but also for all other applications that are particularly soft, brittle, easily deformed or porous.
Technical specifications
TRI-FOLD blind rivets alu/alu dome head 4.8 x 22.2
Grip range min. | 3,00 mm |
Grip range max. | 8,50 mm |
Rivet body length | 20,00 mm |
Hole diameter | 5,10 mm |
Head diameter | 10,10 mm |
Mandrel diameter | 2,90 mm |
Rivet body diameter | 4,80 mm |
Shear strength | 1.100 N |
Tensile strength | 1.400 N |
Material rivet body | Aluminium alloy |
Material mandrel | Aluminium alloy |
Head shape | Dome head |
Weight with packaging and accessories | 2,0600 g |
