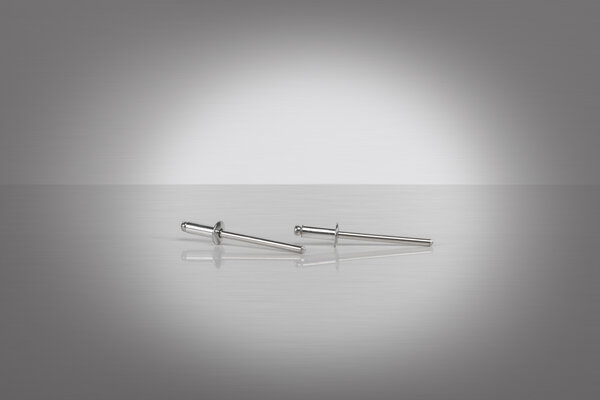

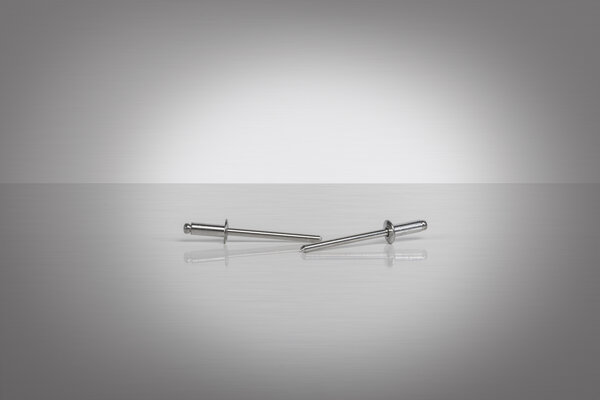

Blind rivets alu/alu large flange 4.8 x 10.3 K 16

Articlenumber: 1455522
EAN-Code: 4007081474313
  • Head diameter
    16,50 mm
  • Head shape
    Large flange

Blind rivets alu/alu large flange 4.8 x 10.3 K 16

You can buy this product at the following online shops.

Please click on a logo and you will directly linked to the online shop.

Advantages in detail

Advantages in detail

Blind rivets alu/alu large flange 4.8 x 10.3 K 16

Aluminium, steel or even lacquered or anodised, the standard range offers the right material combination and dimension for every application. GESIPA standard blind rivets are available in a wide variety of designs, materials, shapes, lengths and colours. Depending on the task a blind rivet is to fulfil, GESIPA offers a choice between a standard model available from stock or a blind rivet specially designed for an application.

Technical specifications

Technical specifications

Blind rivets alu/alu large flange 4.8 x 10.3 K 16

Technical specification fasteners
Rivet body length 10,30 mm
Hole diameter 4,90 mm
Head diameter 16,50 mm
Mandrel diameter 3,00 mm
Rivet body diameter 4,80 mm
Shear strength 1.150 N
Tensile strength 1.420 N
Material rivet body Aluminium alloy
Material mandrel Aluminium alloy
Head shape Large flange
Packaging
Weight with packaging and accessories 2,2160 g
