EAN-Code: 4007081300445

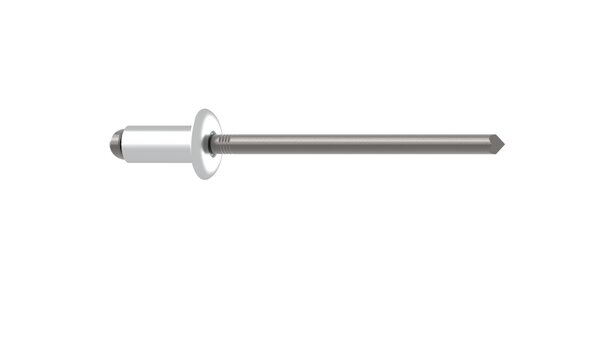

4007081300445 Blind rivets alu/steel dome head 4 x 8
Blind rivets alu/steel dome head 4 x 8
Articlenumber: 1433486EAN-Code: 4007081300445
-
Head diameter8,00 mm
-
Head shapeDome head
Blind rivets alu/steel dome head 4 x 8
You can buy this product at the following online shops.
Please click on a logo and you will directly linked to the online shop.
Advantages in detail
Advantages in detail
Blind rivets alu/steel dome head 4 x 8
Aluminium, steel or even lacquered or anodised, the standard range offers the right material combination and dimension for every application. GESIPA standard blind rivets are available in a wide variety of designs, materials, shapes, lengths and colours. Depending on the task a blind rivet is to fulfil, GESIPA offers a choice between a standard model available from stock or a blind rivet specially designed for an application.
Technical specifications
Technical specifications
Blind rivets alu/steel dome head 4 x 8
| Rivet body length | 8,00 mm |
| Hole diameter | 4,10 mm |
| Head diameter | 8,00 mm |
| Mandrel diameter | 2,10 mm |
| Rivet body diameter | 4,00 mm |
| Shear strength | 1.400 N |
| Tensile strength | 2.000 N |
| Material rivet body | Aluminium alloy |
| Material mandrel | Steel, zinc-plated |
| Head shape | Dome head |
| Weight with packaging and accessories | 1,6210 g |
