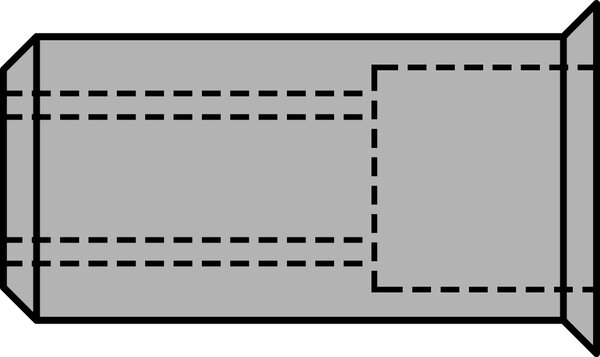

Blind rivet nuts alu small head M5 x 7 x 12.5

Articlenumber: 1433686
EAN-Code: 5013656410654
  • Hole diameter
    7,10 mm
  • Head diameter
    8,10 mm
  • rivet nut body diameter
    7 mm
  • Head shape
    Small head

Blind rivet nuts alu small head M5 x 7 x 12.5

You can buy this product at the following online shops.

Please click on a logo and you will directly linked to the online shop.

Advantages in detail

Advantages in detail

Blind rivet nuts alu small head M5 x 7 x 12.5

GESIPA blind rivet nuts are joining elements which allow you to create strong and durable threads for non-permanent connections. Blind rivet nuts provide an internal thread. As with blind rivets, two or more components can be riveted together using both joining elements. They can be riveted “blindly” into the workpiece, meaning that only one side can be accessed. It is this simplicity which makes the blind rivet nut such a smart solution. Blind rivet nuts are available from GESIPA in various models with different setting-head shapes and made from various materials such as aluminium, steel or stainless steel.

Technical specifications

Technical specifications

Blind rivet nuts alu small head M5 x 7 x 12.5

Technical specification fasteners
rivet nut body length 12,5 mm
Hole diameter 7,10 mm
Thread size M 5
Head diameter 8,10 mm
rivet nut body diameter 7 mm
tightening torque 5,00 Nm
material Aluminium alloy
Thread length 6,50 mm
Head shape Small head
Thread breaking force 5700 N
Packaging
Weight with packaging and accessories 0,5500 g
