EAN-Code: 4007081170062
4007081170062 PH 2-VK
PH 2-VK
Articlenumber: 1456774EAN-Code: 4007081170062
-
Weight carcass1,30 kg
-
Setting force6.200 N
-
description of working rangeBlind rivets up to 4 mm Ø alu, steel and copper
PH 2-VK
You can buy this product at the following online shops.
Please click on a logo and you will directly linked to the online shop.
Advantages in detail
Advantages in detail
PH 2-VK

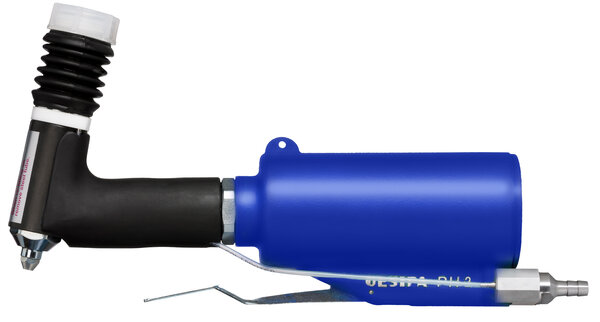

The PH 2-VK is a pneumatic-hydraulic riveting gun with a shorter pistol head design intended for use in hard-to-reach riveting points. The advantageous position of its centre of gravity allows you to keep working while avoiding fatigue. The PH 2-VK can process blind rivets with diameters of up to 4.0 mm made of aluminium, steel and copper.
Technical specifications
Technical specifications
PH 2-VK
| tool with return spring | False |
| Working range in steel | 4,00 mm |
| operating mode | Compressed air |
| operating air pressure max. | 7,00 bar |
| operating air pressure min. | 5,00 bar |
| Tool stroke | 14 mm |
| Weight carcass | 1,30 kg |
| scope of delivery | PH 2-VK, nosepieces: 10/18, 10/24 and 10/27, 1 spent mandrel bottle, 1 maintenance wrench of MSU and MSZ, maintenance instructions with spare parts list, delivered in a carton |
| Air consumption | 1,80 liter |
| hose connection | 6,00 |
| Setting force | 6.200 N |
| description of working range | Blind rivets up to 4 mm Ø alu, steel and copper |
| Weight with packaging and accessories | 1,70 kg |
Equipment and accessories
Equipment and accessories
PH 2-VK
| Name | Articlenumber | EAN-Code | Buy Product |
|---|---|---|---|
| Jaws (2-part) | 1434071 | 4007081052054 |
