PH 2
Articlenumber: 1456771EAN-Code: 4007081170017
-
Setting force8.800 N
-
description of working rangeBlind rivets from 3 up to 5 mm Ø all materials and blind rivets with 2.4 mm up to 3.2mm Ø with small jaws. Not suitable for stainless steel CAP® blind rivets.
-
Weight carcass1,30 kg
PH 2
You can buy this product at the following online shops.
Please click on a logo and you will directly linked to the online shop.
Advantages in detail
Advantages in detail
PH 2

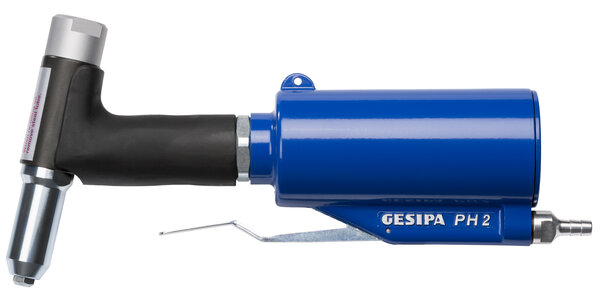

The PH 2 pneumatic-hydraulic blind rivet setting tool is highly versatile thanks to its 360° adjustable aluminium hydraulic head with wear-resistant cylinder surface. The quick-action vent valve ensures fast return and a high working cycle. The PH 2 also features a low-noise pneumatic circuit and a simple, reliable valve design. The advantageous position of its centre of gravity allows you to keep working while avoiding fatigue. The piston made from hardened and chromium-plated steel makes the tool easy to use and resistant to wear, while the compact, low-wear seals with good wiping action ensure a long service life.
Technical specifications
Technical specifications
PH 2
| tool with return spring | False |
| Working range in steel | 5,00 mm |
| operating mode | Compressed air |
| operating air pressure max. | 7,00 bar |
| operating air pressure min. | 5,00 bar |
| Tool stroke | 15 mm |
| Weight carcass | 1,30 kg |
| scope of delivery | PH 2, nosepieces: 16/24, 16/27, 16/29, 16&32 an 16/36, 1 set of jaws, 1 spent mandrel bottle, 1 wrench each of MSU and MSZ, maintenance instructions with spare parts list, delivered in a carton |
| Air consumption | 1,80 liter |
| hose connection | 6,00 |
| Setting force | 8.800 N |
| description of working range | Blind rivets from 3 up to 5 mm Ø all materials and blind rivets with 2.4 mm up to 3.2mm Ø with small jaws. Not suitable for stainless steel CAP® blind rivets. |
| Weight with packaging and accessories | 1,90 kg |
Equipment and accessories
Equipment and accessories
PH 2
| Name | Articlenumber | EAN-Code | Buy Product |
|---|---|---|---|
| Jaws (3-part) | 1434103 | 4007081102155 | |
| Small jaw assembly (PH 1. PH 2. PH 2-KA) | 1456783 | 4007081171984 | |
| Universal nosepiece - 16 | 1456776 | 4007081171182 | |
| VAS (Vacuum absorption system for PH1 and PH2) | 1457579 | 4007081280013 | |
| Interface 4.0 for connection to external controllers | 1634326 | 4007081094344 | |
| Extension unit (100 mm) for PH 1 und PH 2 | 1456779 | 4007081171649 | |
| Offset head for PH 2 | 1456612 | 4007081040020 | |
| Time delay valve | 1450893 | 4007081942874 |
Spare Parts
Spare Parts
| Name | Articlenumber | EAN-Code | Buy Product |
|---|---|---|---|
| End cap complete | 1434331 | 4007081172356 | |
| Hose fitting with sealing ring | 1456784 | 4007081172264 | |
| Closure screw | 1434327 | 4007081172202 | |
| Spent mandrel container | 1445302 | 4007081171724 | |
| Release lever | 1434330 | 4007081172318 | |
| Sealing ring | 1435258 | 4007081282314 | |
| Sealing ring holder | 1434325 | 4007081172189 | |
| Jaw pusher | 1434319 | 4007081172073 | |
| Jaw pusher with reducing tube for thin mandrels up to 2.3 mm Ø | 1435261 | 4007081284707 | |
| Jaw pusher with reducing tube for thin mandrels up to 2.3 mm Ø | 1435262 | 4007081285704 | |
| Compression spring | 1445303 | 4007081172080 | |
| Compression spring | 1445314 | 4007081179690 | |
| Compression spring | 1445308 | 4007081172349 | |
| Jaws (3-part) | 1434103 | 4007081102155 | |
| Jaw housing | 1434102 | 4007081102124 | |
| Jaw adapter | 1434320 | 4007081172103 | |
| Hydraulic oil refill bottle 250 ml | 1456780 | 4007081171755 | |
| K seal | 1434323 | 4007081172134 | |
| K seal | 1434324 | 4007081172141 | |
| K seal | 1434326 | 4007081172196 | |
| Grooved pin | 1445307 | 4007081172332 | |
| Piston | 1434322 | 4007081172127 | |
| Piston guide with wiper | 1434318 | 4007081172042 | |
| Locking nut | 1434337 | 4007081040433 | |
| Plastic grip | 1434343 | 4007081172622 | |
| Air piston complete | 1456791 | 4007081172615 | |
| Nosepiece 16/27 | 1434289 | 4007081171274 | |
| Nosepiece 16/24 | 1434288 | 4007081171236 | |
| Nosepiece 16/29 | 1434290 | 4007081171298 | |
| Nosepiece 16/32 | 1434291 | 4007081171328 | |
| Nosepiece 16/36 | 1434292 | 4007081171366 | |
| Nut | 1434321 | 4007081172110 | |
| Buffer ring | 1434334 | 4007081172424 | |
| Return spring | 1445304 | 4007081172165 | |
| Round cord packing ring | 1434332 | 4007081172363 | |
| Snap ring | 1445305 | 4007081172172 | |
| Steel head sleeve | 1434105 | 4007081102216 | |
| Universal wrench MSU | 1434311 | 4007081171779 | |
| Valve spring | 1445306 | 4007081172301 | |
| Valve spud | 1434329 | 4007081172271 | |
| Valve tube | 1456785 | 4007081172288 | |
| Tool body | 1434328 | 4007081172257 | |
| Tool head | 1434315 | 4007081172028 | |
| Tool head assembly | 1456792 | 4007081172653 |
