HN 2

Articlenumber: 1434107
EAN-Code: 4007081130011
  • Tool stroke
    10 mm
  • Weight carcass
    1,85 kg
  • description of working range
    Blind rivets from 3.0 to 6.4 mm Ø all materials, except PolyGrip blind rivets with 6.4 mm Ø made of stainless steel and G-Bulb blind rivets (max. mandrel Ø 4.3 mm)

HN 2

You can buy this product at the following online shops.

Please click on a logo and you will directly linked to the online shop.

Advantages in detail

Advantages in detail

HN 2

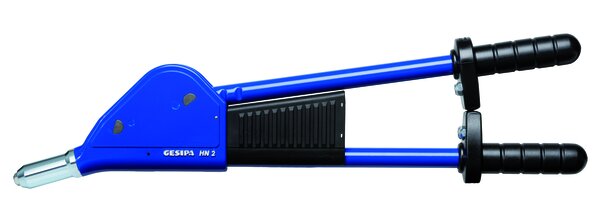

The HN 2 blind rivet hand tool is only suitable for Bulb-Tite® blind rivets and has a tool housing made from high-quality, die-cast aluminium. The design of the HN 2 makes it highly stable and affords excellent protection against dirt. The gear-segment ratio, alongside the advantageous lever-arm configuration, reduces the force required and dampens the break-off impact. With the fixed housing lever and the handy grip design, the HN 2 is highly convenient and easy to use. Thanks to the operating lever, repeated re-positioning is also possible on the workpiece without any problems, which makes the tool particularly useful for installing excessively long blind rivets. The rivet mandrel container is fitted to the housing and can be swivelled around, allowing it to be emptied safely and with ease.

Technical specifications

Technical specifications

HN 2

Technical specification tools
tool with return spring False
operating mode Manual
tool length 570,00 mm
Tool stroke 10 mm
Weight carcass 1,85 kg
scope of delivery HN 2, nosepieces: 16/29, 16/32, 16/36, 16/40 and 16/45, spent mandrel container, maintenance instructions with spare parts list, delivered in a carton
max. mandrel diameter 4,30 mm
description of working range Blind rivets from 3.0 to 6.4 mm Ø all materials, except PolyGrip blind rivets with 6.4 mm Ø made of stainless steel and G-Bulb blind rivets (max. mandrel Ø 4.3 mm)
Potential working range in aluminium 3,0 mm, 4,0 mm, 4,8 mm, 5,0 mm, 6,0 mm, 6,4 mm, 3,2 mm
Potential working range in steel 3,0 mm, 4,0 mm, 4,8 mm, 5,0 mm, 6,0 mm, 6,4 mm, 3,2 mm
Potential working range in stainless steel 3,0 mm, 4,0 mm, 4,8 mm, 5,0 mm, 6,0 mm, 6,4 mm, 3,2 mm
Packaging
Weight with packaging and accessories 2,06 kg
Equipment and accessories

Equipment and accessories

HN 2

Name Articlenumber EAN-Code Buy Product
Jaws (3-part) 1434103 4007081102155
Spare Parts

Spare Parts

Name Articlenumber EAN-Code Buy Product
End block with guide tube 1456719 4007081132190
Spent mandrel container 1456720 4007081132206
Jaw pusher 1434106 4007081122122
Compression spring 1445263 4007081132138
Jaws (3-part) 1434103 4007081102155
Jaws (3-part) 1434173 4007081151528
Jaw housing 1434129 4007081132121
Housing with lever and grip 1456717 4007081132015
Grip 1434124 4007081132046
Nosepiece 16/36 1434292 4007081171366
Nosepiece 16/40 1434293 4007081171397
Nosepiece 16/42 BT (for BULB-TITE blind rivets) 1434303 4007081171502
Nosepiece 16/45 1434300 4007081171458
Nosepiece 16/48 BT (for Monobolt blind rivets) 1434304 4007081171526
Steel head sleeve 1434105 4007081102216
Transmission segment 1434125 4007081132060
Gear rack 1434126 4007081132084
