Flipper box

Articlenumber: 1433951
EAN-Code: 4007081042918
  • total stroke
    16,20 mm
  • Weight carcass
    0,75 kg
  • description of working range
    Blind rivets up to 5 mm Ø aluminium and 4 mm Ø steel and stainless steel (max. mandrel Ø 2.8 mm)

Flipper box

You can buy this product at the following online shops.

Please click on a logo and you will directly linked to the online shop.

Advantages in detail

Advantages in detail

Flipper box

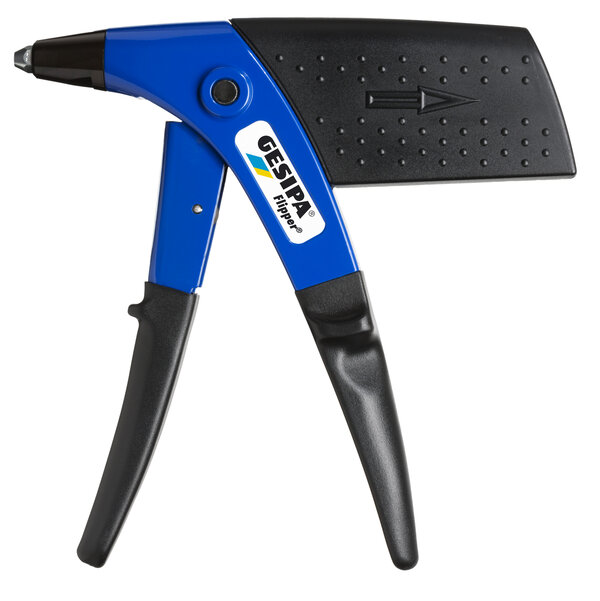

The blind rivet hand tool Flipper for perfect single-handed applications is a robust and stable riveting tool complete with a spent rivet mandrel container. Single-handed operation allows you to reduce the amount of force needed for riveting by around 40 per cent. In addition, the Flipper features an ergonomic design because the force increases as the human hand closes – a fact which is exploited to the fullest with its special lever design for installing blind rivets. The jaw mechanism holds the rivet mandrel securely after breaking off, and you can release the mandrel once again by pressing the lever forwards. The long stroke of the tool is also useful for excessively long blind rivets. The Flipper box features not only the practical blind rivet setting tool, but also three different sizes of Polygrip blind rivets. The tool and the blind rivets are supplied in a practical, plastic case.

Technical specifications

Technical specifications

Flipper box

Technical specification tools
tool with return spring True
operating mode Manual
single action stroke 1,80 mm
tool length 221,00 mm
total stroke 16,20 mm
Weight carcass 0,75 kg

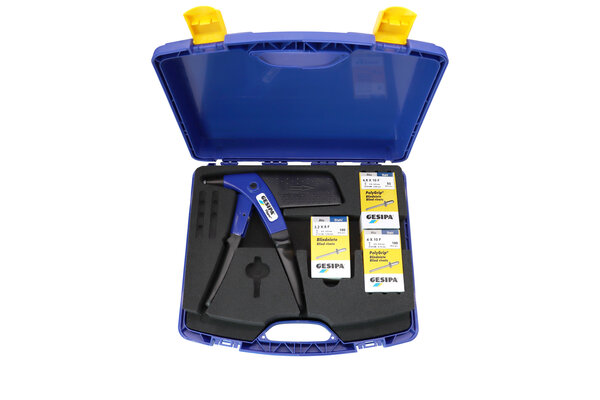

scope of delivery Flipper, blind rivets MiniPack PolyGrip alu/steel 3.2 x 8.0 mm, 4.0 x 10.0 mm and 4.8 x 10.0 mm, 1 maintenance wrench, maintenance instructions with spare parts list, delivered in a plastic case
max. mandrel diameter 2,80 mm
description of working range Blind rivets up to 5 mm Ø aluminium and 4 mm Ø steel and stainless steel (max. mandrel Ø 2.8 mm)
Potential working range in aluminium 2,4 mm, 3,0 mm, 4,0 mm, 4,8 mm, 5,0 mm
Potential working range in steel 2,4 mm, 3,0 mm, 4,0 mm, 3,2 mm
Potential working range in stainless steel 2,4 mm, 3,0 mm, 4,0 mm, 3,2 mm
Packaging
Weight with packaging and accessories 1,95 kg
Equipment and accessories

Equipment and accessories

Flipper box

Name Articlenumber EAN-Code Buy Product
Jaws (2-part) 1434071 4007081052054
Conversion kit for plastic blind rivets 1433984 4007081013000
Spare Parts

Spare Parts

Name Articlenumber EAN-Code Buy Product
Closure screw 1433966 4007081012041
Closure screw 1433983 4007081012997
drive paw 1433974 4007081012164
Jaw Pusher 1433970 4007081012102
Jaw pusher 1433982 4007081012980
Compression spring 1433971 4007081012126
Jaws (2-part) 1434071 4007081052054
Jaws (2-part) 1434086 4007081053051
Jaw housing 1433959 4007081013208
Housing complete with sleeve grip 1433963 4007081012010
Link pin 1433967 4007081012058
Maintenance wrench SW 10 1433980 4007081012232
Self opening spring 1433977 4007081012195
O-ring for Jaw housing 1433981 4007081012249
Return spring 1433972 4007081012133
Snap ring 1433968 4007081012065
Spring dowel sleeve 1433979 4007081012218
Retaining spring 1433978 4007081012201
Storage finger (3-part) 1433975 4007081012171
Conversion kit for plastic blind rivets 1433984 4007081013000
