G-Sealed blind rivet nut steel dome head M5 x 7 x 17

Articlenumber: 1758508
EAN-Code: 4007081119290
  • Grip range min.
    0,25 mm
  • Grip range max.
    3,00 mm
  • Hole diameter
    7,10 mm
  • rivet nut body diameter
    7 mm
Buy Product

G-Sealed blind rivet nut steel dome head M5 x 7 x 17

You can buy this product at the following online shops.

Please click on a logo and you will directly linked to the online shop.

Advantages in detail

Advantages in detail

G-Sealed blind rivet nut steel dome head M5 x 7 x 17

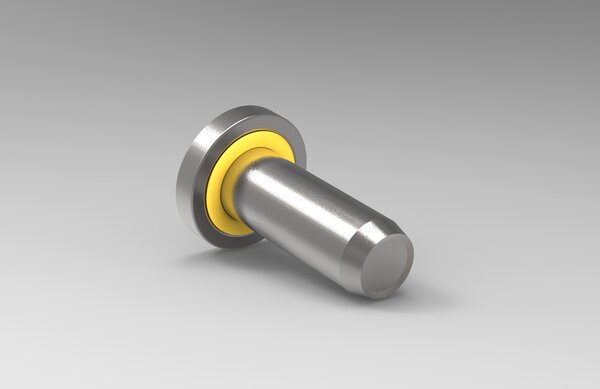

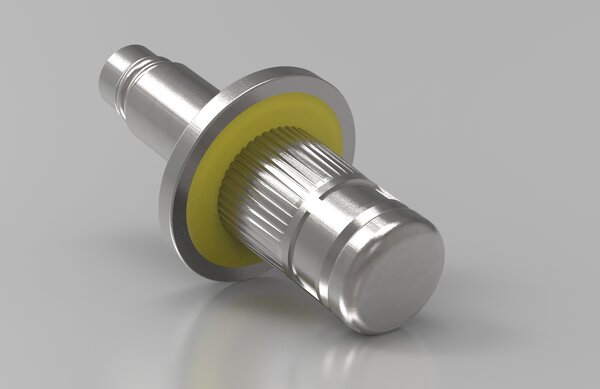

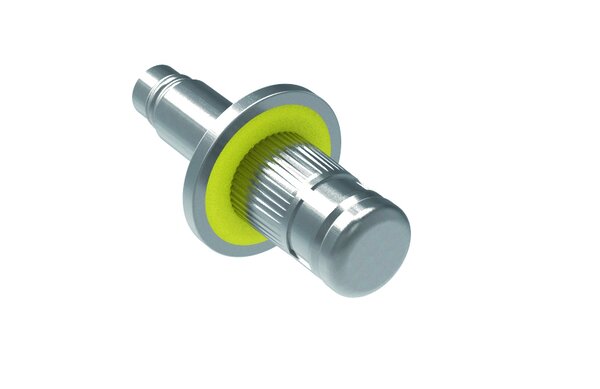

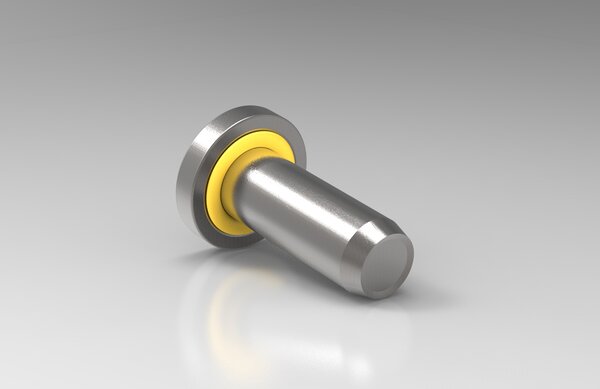

The G-Sealed blind rivet nut has an extra pre-coating, making it especially durable. G-Sealed is a non-reactive pre-coating that is used to create an under-head seal for blind rivet nuts, blind rivet nut studs and blind rivets. G-Sealed can be used in many applications but is particularly suitable for the automotive industry due to its excellent thermal and chemical resistance. The coating is non-reactive as well as non-hardening and is also dry, elastic and non-slip. The fastener ensures instant sealing immediately after assembly. G-Sealed blind rivet nuts have good thermal and chemical resistance and can be used for both metallic and non-metallic materials. Another advantage of the fastener is that it has no markings and is therefore not dangerous or harmful to the environment.

Technical specifications

Technical specifications

G-Sealed blind rivet nut steel dome head M5 x 7 x 17

Technical specification fasteners
Grip range min. 0,25 mm
Grip range max. 3,00 mm
rivet nut body length 17 mm
Hole diameter 7,10 mm
Thread size M 5
Head diameter 11,00 mm
rivet nut body diameter 7 mm
tightening torque 8,00 Nm
material Steel, zinc-plated
Thread length 7,00 mm
Head shape Dome head
Thread breaking force 11500 N
Packaging
Weight with packaging and accessories 2,9430 g
