EAN-Code: 4007081050012
4007081050012 NTX
NTX
Articlenumber: 1434040EAN-Code: 4007081050012
-
Tool stroke8 mm
-
description of working rangeBlind rivets up to 5 mm Ø aluminium and 4 mm Ø steel and stainless steel (max. mandrel Ø 3,0 mm)
NTX
You can buy this product at the following online shops.
Please click on a logo and you will directly linked to the online shop.
Advantages in detail
Advantages in detail
NTX

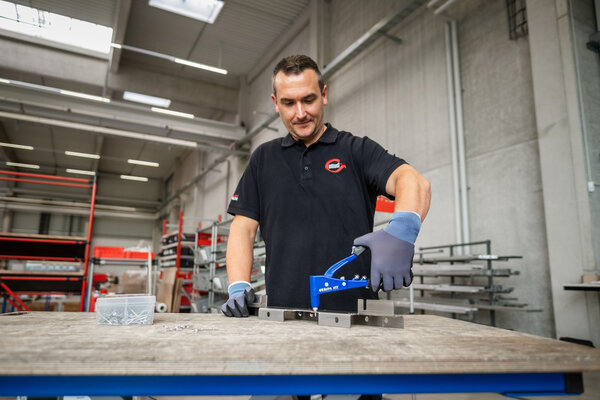

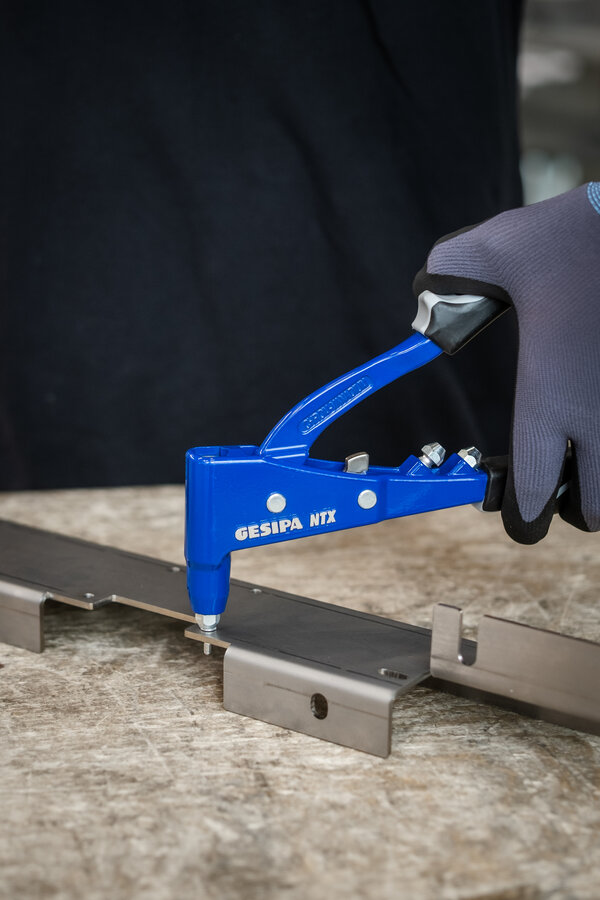

The NTX hand riveting tools are easy to use thanks to their ergonomic and non-slip sleeve grips. The tool housing is made from high-quality, die-cast aluminium, and the tool shanks are forged from chromium-vanadium steel. The intermediate lever system reduces the force applied and dampens the break-off impact. With the narrow tool head, the NTX hand-operated riveting tool can also be used in hard-to-reach areas. The hand riveting tool is easy to maintain. For example, the jaws can be replaced quickly and with incredible ease.
Technical specifications
Technical specifications
NTX
tool with return spring | False |
Working range in steel | 4,00 mm |
operating mode | Manual |
tool length | 260,00 mm |
Tool stroke | 8 mm |
Weight carcass | 0,58 kg |
scope of delivery | NTX, nosepieces: 10/18, 10/24 and 10/32, 1 maintenance wrench, operating instructions with spare parts list, delivered in a carton |
max. mandrel diameter | 3,00 mm |
description of working range | Blind rivets up to 5 mm Ø aluminium and 4 mm Ø steel and stainless steel (max. mandrel Ø 3,0 mm) |
Weight with packaging and accessories | 0,65 kg |
Equipment and accessories
Equipment and accessories
NTX
Name | Articlenumber | EAN-Code | Buy Product |
---|---|---|---|
Jaws (2-part) | 1434071 | 4007081052054 |
Spare Parts
Spare Parts
Name | Articlenumber | EAN-Code | Buy Product |
---|---|---|---|
Closure screw | 1434073 | 4007081052085 | |
Bolt | 1434075 | 4007081052115 | |
Bolt | 1434076 | 4007081052139 | |
Jaw pusher | 1434072 | 4007081052061 | |
Compression spring | 1445260 | 4007081054072 | |
Compression spring | 1445258 | 4007081052078 | |
Jaws (2-part) | 1434071 | 4007081052054 | |
Jaws (2-part) | 1434241 | 4007081161060 | |
Jaw housing | 1434070 | 4007081052047 | |
Strap | 1434095 | 4007081054218 | |
Lever | 1434074 | 4007081052108 | |
Nosepiece 10/18 | 1434055 | 4007081051187 | |
Nosepiece 10/24 | 1434061 | 4007081051248 | |
Nosepiece 10/27 | 1434062 | 4007081051279 | |
Nosepiece 10/32 | 1434065 | 4007081051323 | |
Self opening spring | 1445261 | 4007081054201 | |
Snap ring | 1445259 | 4007081052146 | |
Tool housing with sleeve grip for NTX | 1456624 | 4007081052016 | |
Tool housing with sleeve grip for NTX-F | 1456626 | 4007081054010 | |
Tool shanks with sleeve grip for NTX | 1456625 | 4007081052023 | |
Tool shanks with sleeve grip for NTX | 1456627 | 4007081054027 |
