Flipper
Articlenumber: 1433950EAN-Code: 4007081010009
-
description of working rangeBlind rivets up to 5 mm Ø aluminium and 4 mm Ø steel and stainless steel (max. mandrel Ø 2.8 mm)
Flipper
You can buy this product at the following online shops.
Please click on a logo and you will directly linked to the online shop.
Advantages in detail
Flipper

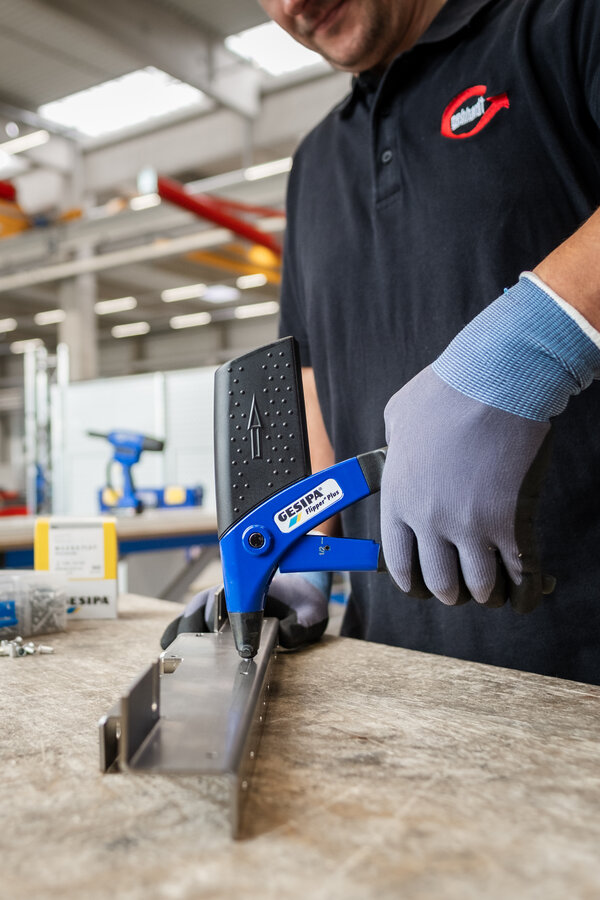

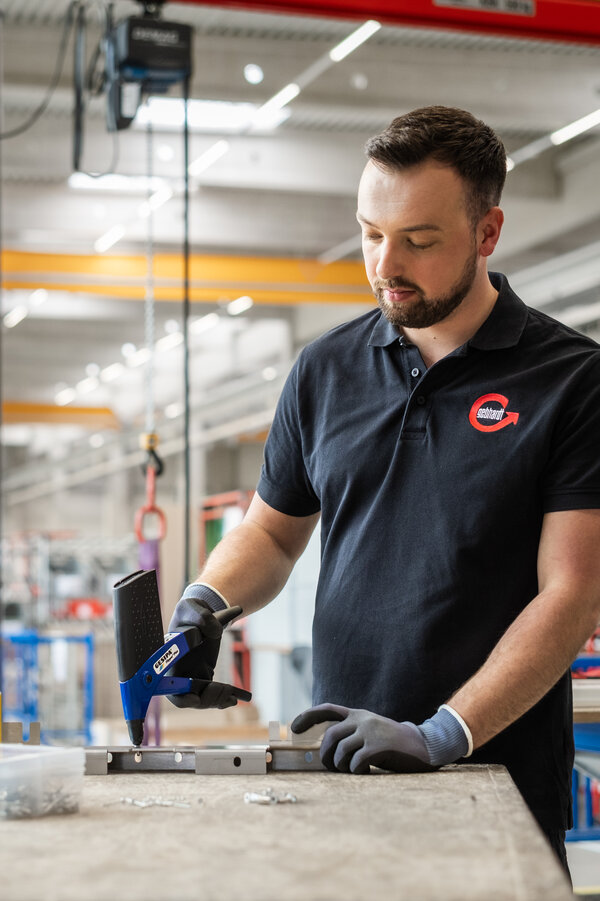

The blind rivet hand tool Flipper for perfect single-handed applications is a robust and stable riveting tool complete with a spent rivet mandrel container. Single-handed operation allows you to reduce the amount of force needed for riveting by around 40 per cent. In addition, the Flipper features an ergonomic design because the force increases as the human hand closes – a fact which is exploited to the fullest with its special lever design for installing blind rivets. The jaw mechanism holds the rivet mandrel securely after breaking off, and you can release the mandrel once again by pressing the lever forwards. The long stroke of the tool is also useful for excessively long blind rivets. The Flipper sets blind rivets up to a diameter of 5 mm aluminium and 4 mm steel and stainless steel (max. mandrel diameter 2.8 mm).
Technical specifications
Flipper
tool with return spring | True |
Working range in steel | 4,00 mm |
operating mode | Manual |
single action stroke | 1,80 mm |
tool length | 221,00 mm |
total stroke | 16,20 mm |
Weight carcass | 0,75 kg |
scope of delivery | Flipper, nosepieces: 10/18, 10/24 and 10/29, 1 maintenance wrench (on magazine), operating instruction with spare parts list, delivered in a carton |
max. mandrel diameter | 2,80 mm |
description of working range | Blind rivets up to 5 mm Ø aluminium and 4 mm Ø steel and stainless steel (max. mandrel Ø 2.8 mm) |
Weight with packaging and accessories | 0,86 kg |
Equipment and accessories
Flipper
Name | Articlenumber | EAN-Code | Buy Product |
---|---|---|---|
Jaws (2-part) | 1434071 | 4007081052054 | |
Conversion kit for plastic blind rivets | 1433984 | 4007081013000 |
Spare Parts
Name | Articlenumber | EAN-Code | Buy Product |
---|---|---|---|
Closure screw | 1433966 | 4007081012041 | |
Closure screw | 1433983 | 4007081012997 | |
Drive pawl | 1433974 | 4007081012164 | |
Operating lever with sleeve grip | 1456591 | 4007081012140 | |
Bolt | 1433976 | 4007081012188 | |
Jaw pusher | 1433970 | 4007081012102 | |
Jaw pusher | 1433982 | 4007081012980 | |
Compression spring | 1433971 | 4007081012126 | |
Jaws (2-part) | 1434071 | 4007081052054 | |
Jaws (2-part) | 1434086 | 4007081053051 | |
Jaw Housing | 1433959 | 4007081013208 | |
Housing with slide block, lever and grip | 1433963 | 4007081012010 | |
Pivot bolt | 1433967 | 4007081012058 | |
Maintenance wrench SW 10 | 1433980 | 4007081012232 | |
Nosepiece 10/18 | 1434055 | 4007081051187 | |
Nosepiece 10/24 | 1434061 | 4007081051248 | |
Nosepiece 10/29 | 1434064 | 4007081051293 | |
Nosepiece 10/30 K (for plastic rivets) | 1434092 | 5013656053301 | |
Nosepiece 10/35 K (for plastic rivets) | 1434093 | 5013656053356 | |
Nosepiece 10/40 K (for plastic rivets) | 1434094 | 5013656053400 | |
Self opening spring | 1433977 | 4007081012195 | |
O-ring for Jaw housing | 1433981 | 4007081012249 | |
Return spring | 1433972 | 4007081012133 | |
Snap ring | 1433968 | 4007081012065 | |
Spring dowel sleeve | 1433979 | 4007081012218 | |
Retaining spring | 1433978 | 4007081012201 | |
Storage finger (3-part) per set | 1433975 | 4007081012171 | |
Lock activator | 1433969 | 4007081012072 | |
Conversion kit for plastic blind rivets | 1433984 | 4007081013000 | |
Mandrel Container SW10 | 1456592 | 4007081012225 | |
Steel head sleeve | 1433965 | 4007081012034 |
