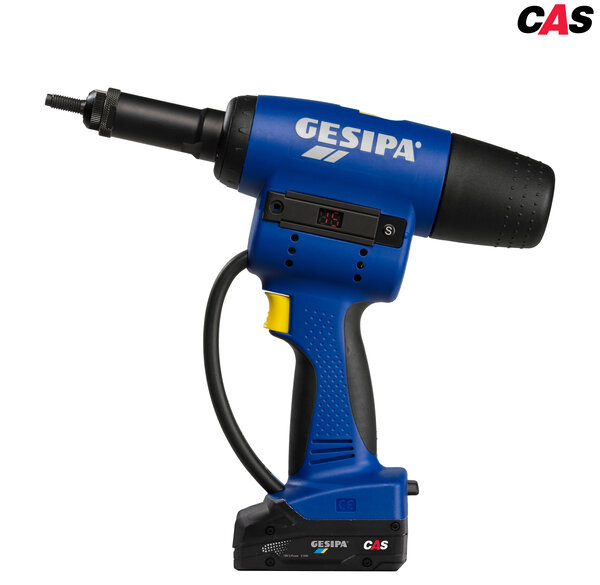

FireBird Pro Gold Edition with 1 Li-Ion battery 18V - 2,0 Ah / charger in L-Boxx

Articlenumber: 1679674
EAN-Code: 4007081102551
  • Weight with battery
    2,40 kg
  • Setting force
    20.000 N
  • description of working range
    Blind rivet nuts up to M12 alu and steel and M10 stainless steel

FireBird Pro Gold Edition with 1 Li-Ion battery 18V - 2,0 Ah / charger in L-Boxx

You can buy this product at the following online shops.

Please click on a logo and you will directly linked to the online shop.

Advantages in detail

Advantages in detail

FireBird Pro Gold Edition with 1 Li-Ion battery 18V - 2,0 Ah / charger in L-Boxx

GESIPA relies on CAS - the manufacturer-independent battery system. More than 400 electrical devices – but just one battery! With the Cordless Alliance System (abbreviated: CAS) tools from all participating manufacturers for a wide range of applications are combined easily thanks to uniform batteries and charging devices. GESIPA is now one of the participating manufacturers and the CAS system is being extended to include battery-powered riveting tools. The CAS battery packs are particularly long-lasting and powerful. Depending on the design, they are based on Li-Ion or LiHD technology. At GESIPA the blind riveting and blind rivet nut setting tools can be purchased as standard with 2.0 Ah battery packs - the compact 4.0 Ah battery is also available as an accessory. But of course all other available CAS battery packs can also be used with our Bird Pro devices. With a force of 20,000 N and the tried-and-tested brushless motor, the FireBird Pro Gold Edition is powerful and fast when setting blind rivet nuts of up to M12 aluminum and steel and M10 stainless steel. Since no wear-prone brushes are used, the motor of the FireBird Pro Gold Edition has an extremely long service life, is virtually non-wearing and reliably guarantees the fastest setting frequencies. The setting tool is controlled solely by the setting force adjustment. The thread of the blind rivet nut is therefore optimally protected while ensuring the blind rivet nut is securely anchored in the material. With the 18-volt battery power supply, the tool is suitable for flexible, cordless use on construction sites and in industrial manufacturing. Drilling of the blind rivet nut is performed with optimised torque and automated shutdown. The mechanism for triggering the riveting process is functionally separated from the drilling process and, once the riveting process is complete, the FireBird Pro Gold Edition provides an automatic drilling function. The riveting tool is robust and features an impact-resistant housing. Furthermore, the balanced position of its centre of gravity and the convenient handle allow you to keep working while avoiding fatigue.
Scope of delivery: FireBird Pro Gold Edition, threaded mandrel and nosepiece M6 (in working position), threaded mandrel and nosepiece M8 and M10 (in magazine), 1x hexagonal wrench, 2x double open ended wrench SW 24/27, card quick adjustment, card setting force pre-adjustment, operating manual with spare parts list, 1 CAS-battery 18V / 2.0 Ah (Li-Ion), 1 charger for CAS-batterys 18V Li-Ion, delivered in the L-BOXX

Technical specifications

Technical specifications

FireBird Pro Gold Edition with 1 Li-Ion battery 18V - 2,0 Ah / charger in L-Boxx

Technical specification equipement + spare parts
battery power 2,00 Ah
battery voltage 18 V
Technical specification tools
drive Brushless DC motor (BLDC)
number of included batteries 1,00 piece
Working range in steel 12,00 mm
operating mode Battery-powered
Weight with battery 2,40 kg
Tool stroke 10 mm
Weight carcass 2,00 kg
scope of delivery FireBird Pro Gold Edition, threaded mandrel and nosepiece M6 (in working position), threaded mandrel and nosepiece M8 and M10 (in magazine), 1x hexagonal wrench, 1x double open ended wrench SW 24/27, card quick adjustment, card setting force pre-adjustment, operating manual with spare parts list, 1 CAS-battery 18V / 2.0 Ah (Li-Ion), 1 charger for CAS-batterys 18V Li-Ion, delivered in the L-BOXX
Setting stroke 10,00 mm
Setting force 20.000 N
description of working range Blind rivet nuts up to M12 alu and steel and M10 stainless steel
Packaging
Weight with packaging and accessories 6,88 kg
Equipment and accessories

Equipment and accessories

FireBird Pro Gold Edition with 1 Li-Ion battery 18V - 2,0 Ah / charger in L-Boxx

Name Articlenumber EAN-Code Buy Product
FireFox accessories UNC/UNF dimensions 1458112 4007081057936
FireFox accessories metric dimensions 1458111 4007081057349
18V Li-Power 2,0 Ah battery 1679689 4007081102650
18V LiHD 4.0 Ah battery 1679690 4007081102667
Charger for 18V Li-Ion battery (EU packed) 1679694 4007081102674
Charger for 18V Li-Ion battery (UK packed) 1679695 4007081102681
Charger for 18V Li-Ion battery (US packed) 1679696 4007081102698
L-Boxx 1622522 4007081092708
L-Boxx + inlay 1691413 4007081105392
Conversion kit for rivet nut studs M 4 1436285 4007081057875
Conversion kit for rivet nut studs M 5 1436286 4007081057882
Conversion kit for rivet nut studs M 6 1436287 4007081057899
Conversion kit for rivet nut studs M 8 1436288 4007081057905
Conversion kit for coarse thread 5mm 1458170 4007081903745
Conversion kit for extended DIN screws (SL30) M4 x min. 50 1458182 4007081926713
Conversion kit for blind rivet nuts M5 1436279 4007081057844
Conversion kit for extended DIN screws (SL30) M5 x min. 50 1458183 4007081926720
Conversion kit for blind rivet nuts M6 1436283 4007081057851
Conversion kit for extended DIN screws (SL30) M6 x min. 60 1458184 4007081926737
Conversion kit for blind rivet nuts M8 1436284 4007081057868
Conversion kit for extended DIN screws (SL30) M8 x min. 60 (not FireFox 1 F) 1458178 4007081921152
Conversion kit for blind rivet nuts M4 1436264 4007081057837
Conversion kit for coarse thread 6mm 1458171 4007081903752
Conversion kit for extended DIN screws M4 SL50 1529115 4007081044349
Conversion kit for extended DIN screws M5 SL50 1567148 4007081081566
Conversion kit for extended DIN screws M6 SL50 1567147 4007081081559
Conversion kit for extended DIN screws M8 SL50 1567146 4007081081542
Spare Parts

Spare Parts

Name Articlenumber EAN-Code Buy Product
Drive unit FireBird Pro complete 1524562 4007081042345
Locking slider 1674378 4007081101103
Hanger 1445746 4007081908207
Sticker 1669149 4007081100168
Light complete 1457644 4007081925945
Tool bar 1678856 4007081101912
Rotating rod complete 1524563 4007081042352
Compression spring 1436247 4007081551731
Pressure disc 1434962 4007081912884
E-control 1679107 4007081102131
Housing screw long 1445772 4007081252027
Housing 1678855 4007081101905
Threaded mandrel M 10 1436216 4007081056878
Threaded mandrel M 6 1436214 4007081056854
Threaded mandrel M 8 1436215 4007081056861
Bearing 1445776 4007081913256
Head 1450845 4007081933889
Plate 1435408 4007081923491
Cable duct iBird Pro 1567794 4007081081740
Drive 1445800 4007081262484
Bevel washer FireBird Pro 1499358 4007081020282
Locking ring 1436193 4007081551465
Ball screw drive 1450849 4007081933926
Coupling complete 1435115 4007081262972
Bearing, complete 1524565 4007081042376
Bearing cage complete 1435397 4007081925952
Magnetic holder complete 1450817 4007081932486
Driver 1524566 4007081042383
Motor complete Gold Edition 1457645 4007081925976
Nosepiece M 10 1436223 4007081056946
Nosepiece M 6 1436221 4007081056922
Nosepiece M 8 1436222 4007081056939
Washer 1445789 4007081262279
Pinion shaft 1524568 4007081042390
Snap ring 1499375 4007081020404
Washer 1499377 4007081020480
Slider 1458123 4007081550833
Screw 1445989 4007081923569
Screw 1449267 4007081093309
Screw 1445990 4007081924061
Setting force control 1499398 4007081020503
Lock washer 1445790 4007081262286
Sintered-metal bushing 1445763 4007081251891
Sintered metal roller 1434970 4007081922760
Lock washer FireBird Pro 1499374 4007081020381
Pin 1435385 4007081920735
Washer 1445791 4007081262293
Accessories magazine 1499453 4007081020527
Lock activator 1450851 4007081933940
Spacer FireBird Pro 1499356 4007081020220
Allen srew 1445768 4007081251983
